FEEDWATER TANKS
INDUSTRIAL-DUTY DESIGN

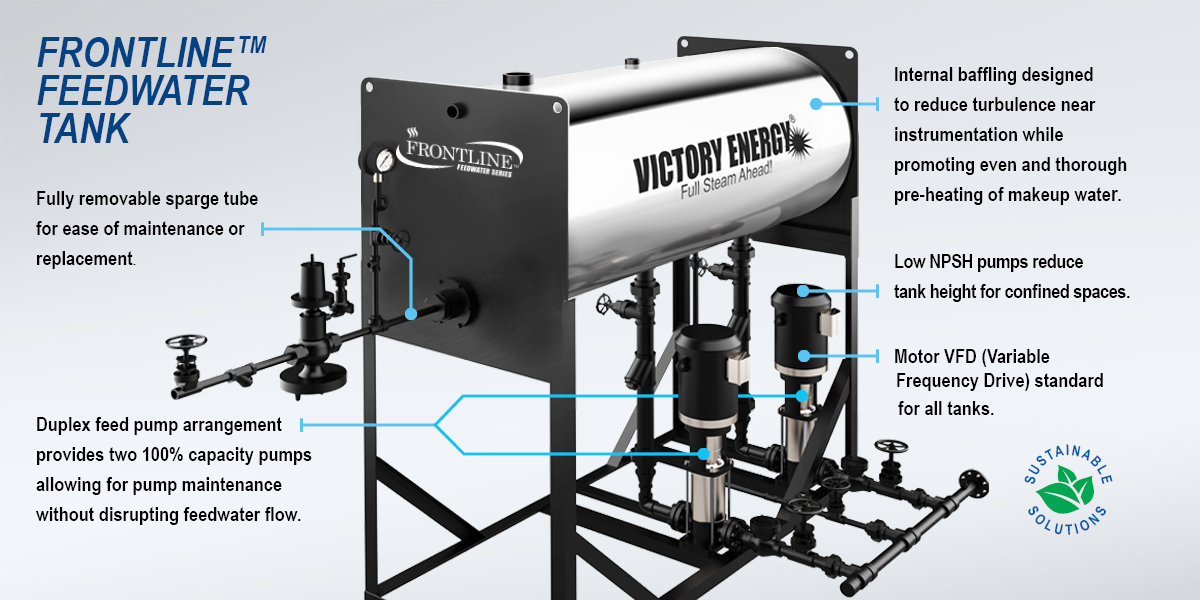

FEEDWATER TANK

FRONTLINE Feedwater Systems are designed to meet virtually every application need.

FRONTLINE is an integral element of any boiler room solution by preventing low water shut-down and reducing corrosion and rust.


  LONG LIVE SUSTAINABLE SOLUTIONS.

•  Boiler Rating: 30 HP to 1,000 HP
•  Tank Capacity: 50 Gallons to 956 Gallons
•  Flow Rate: 2.55 to 77.50 Gallons/Minute
•  Sparge Steam: 125  PPH to 4,180 PPH



QUICK LINKS

BOILER RATING
TANK CAPACITY
FLOW RATE
RECIRCULATION VOLUME
SPARGING STEAM
STEAM SUPPLY
30 HP
50 GALLON TANK
2.55 GALLONS/MIN
5 GALLONS/MIN
125 PPH
0.50 INCH
60 HP
94 GALLON TANK
4.65 GALLONS/MIN
5 GALLONS/MIN
251 PPH
0.50 INCH
100 HP
100 GALLON TANK
7.75 GALLONS/MIN
5 GALLONS/MIN
418 PPH
0.50 INCH
200 HP
214 GALLON TANK
15.50 GALLONS/MIN
10 GALLONS/MIN
936 PPH
0.75 INCH
300 HP
327 GALLON TANK
23.25GALLONS/MIN
10 GALLONS/MIN
1,254 PPH
0.75 INCH
400 HP
415 GALLON TANK
31.00 GALLONS/MIN
10 GALLONS/MIN
1,672 PPH
1.00 INCH
800 HP
754 GALLON TANK
62.00 GALLONS/MIN
10 GALLONS/MIN
3,344 PPH
1.50 INCH
1,000 HP
956 GALLON TANK
77.50 GALLONS/MIN
10 GALLONS/MIN
4,180 PPH
1.50 INCH
